SINGLE ROLLS

ARaymond Hi-Tech Tubes offers a wide range of solutions for the packaging of its products to satisfy all market needs. Depending on their sizes, the hoses can be wound in rolls or in large coils on wooden or plastic supports.

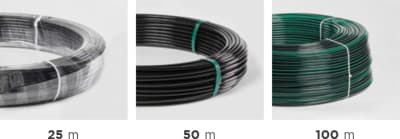

STANDARD ROLLS Available in 25 mt, 50 mt, 100 mt
Other sizes on request

Until diameter 6 x 4 mm
Tolerance on roll length: +/- 2% (meter)

ROLL SIZE

Ø TUBE (mm)	A* ROLL EXTERIOR (mm)	B* ROLL INTERIOR (mm)	C* SHOULDER (mm)	ROLL LENGTH (m)
Ø 6 x 1	Ø 700	Ø 500	500	1000
Ø 8 x 1	Ø 740	Ø 740	430	850
Ø 10 x 1	Ø 725	Ø 725	430	500
Ø 12 x 1,5	Ø 750	Ø 750	430	400
Ø 15 x 1,5	Ø 810	Ø 810	500	250

PACKAGING C.BOX

C.Box packs are specially designed for suppliers of small quantities. Available in 4 different sizes, depending on the material and the dimensions of the hoses to be contained, and can include 25, 50 and 100 meter drums.

COMBINATION SIZE | LENGTH | C.BOX TYPE

Ø TUBE EXTERIOR (mm)	25 m	50 m	100 m
4	Q	Q	W
6	Q	W	Y
8	W	Y	Y
10	Y	-	-
12	Y	-	-

PACKAGING DRUMS

PLYWOOD, PLASTIC AND CARDBOARD

DRUM DIMENSIONS	TYPE A Plywood	TYPE D Plastic	TYPE E Plywood	TYPE G Cardboard	TYPE R Cardboard
DI	250 mm	310 mm	300 mm	280 mm	480 mm
DE	600 mm	600 mm	750 mm	600 mm	760 mm
L	300 mm	315 mm	350 mm	300 mm	350 mm
INNER HOLE	42 mm	82 mm	82 mm	42 mm	65 mm

MAXIMUM TUBE LENGTH PER DRUM - POLYAMIDE

OD Ø	DRUM TYPE A	DRUM TYPE D	DRUM TYPE E	DRUM TYPE G	DRUM TYPE R
4x2 mm	2500 m	2500 m	5000 m	2200 m	**
6x4 mm	1500 m	1500 m	2000 m	1000 m	**
8x6 mm	850 m	800 m	1500 m	800 m	**
10x8 mm	500 m	500 m	1000 m	500 m	**
12x9 mm	350 m	280 m	500 m	300 m	500 m
14x10 mm	**	**	350 m	**	**

**to be tested if requested

MAXIMUM TUBE LENGTH PER DRUM - POLYURETHANE & POLYETHYLENE

Ø Ext.	TYPE A	TYPE D	TYPE E
4x2 mm	1500 m	1500 m	**
6x4 mm	1500 m	1000 m	2000 m
8x6 mm	850 m	800 m	1000 m
10x8 mm	500 m	400 m	600 m
12x9 mm	300 m	200 m	400 m

**to be tested if requested
